Brett Martin Roof Lantern
All rooflights are made to order and cannot be returned. Please ensure sizes and specifications are correct before placing your order.
Roof Lanterns by Brett Martin is an elegant double-glazed glass rooflight. The roof lantern is fully thermally broken and powder coated aluminium frame. It is quick and easy to install on flat roofs of all modern building types to provide natural light, and is manufactured to ISO 9001 standards.
Design Features
- Stylish glass roof lantern with slender aluminium frame offering clean sight lines
- Designed for speedy installation with no silicone required other than to seal between roof and rooflight
- Toughened Safety Glass as standard
- Highly thermally efficient with Low-E double glazing offering an overall U value as low as 1.7W/m2K
- 10 year warranty as standard
- Choice of clear self-clean or blue solar-control self-clean glass - Special glass options also available
- 4 panes or 6 panes of glass options available
- Aluminium frame powder coated to RAL 7016, RAL 9010 or RAL 9005
- Designed for simple mounting direct to a weathered builder’s upstand
- The double glazed glass panel is made up of toughened glass with soft coat Low E inner Pane.
Frequently Asked Questions
How do I clean the inside of a roof lantern?
Cleaning the inside of a roof lantern is not as hard as many people think, but you will need to be careful and patient. Begin by moving any furniture out from under the roof lantern, including rugs. Next, set up a step ladder tall enough to allow you to reach the top of the roof lantern. We strongly urge you to have another person present to hold the ladder steady while you work. Next, dust the inside of the lantern to remove cobwebs and the like. Then spray a very mild cleaning solution onto the glass, then take a damp sponge and wipe down the inside of the glass panels. Rinse out the sponge and use it to remove any residue from the windows and frames.
What are the benefits of installing a roof lantern?
The following are some of the benefits homeowners typically enjoy after installing a roof lantern.
- A brighter home: A roof light will turn a formerly dingy space into a bright, welcoming one.
- Enhanced home value: It is likely that your home will enjoy a noticeable bump in market value after installing a roof lantern.
- Lower energy bills: That’s because you won’t have to rely on electric lights to illuminate that formerly dark and dingy space. Mother nature will now do it for you.
Do you offer an installation service?
Sorry, but we are not able to install your roof lantern. We do, however, make sure that every Brett Martin roof lantern we sell comes complete with detailed installation instructions that you can use yourself or hand over to the contractor you hire to perform the installation. If you lose the instructions simply call us and we will send you a copy.
Will I need planning permission for my roof lantern?
Because it protrudes quite a ways above the established roof line it is likely you will need to obtain planning permission before installing your new roof lantern. Also, if your home is a listed building, or if it is located in a conservation area it is likely you will need to obtain planning permission.
Do roof lanterns come with a warranty?
We sell only the highest quality roof lanterns and stand behind every one with a generous warranty, so you can rest easy. If you would like to learn more about our warranty call our customer care department on 020 4538 3079.
The PDF installation guide can be found on the download tab on this page. The size you select to order should match the final dimensions of your external upstand. For example, an external upstand measuring
1000mm x 2000mm would require a roof lantern purchase measuring 1000mm x 2000mm. The product comes with a +20mm tolerance so this size would also fit
if the external upstand size is 1020mm by 2020mm. The upstand should be minimum 85mm wide and 150mm high. Brett Martin Roof Lantern rooflights are intended
for installation onto a fully weathered and insulated builders upstand on flat. The surface of flat roofs normally require some degree of pitch to ensure

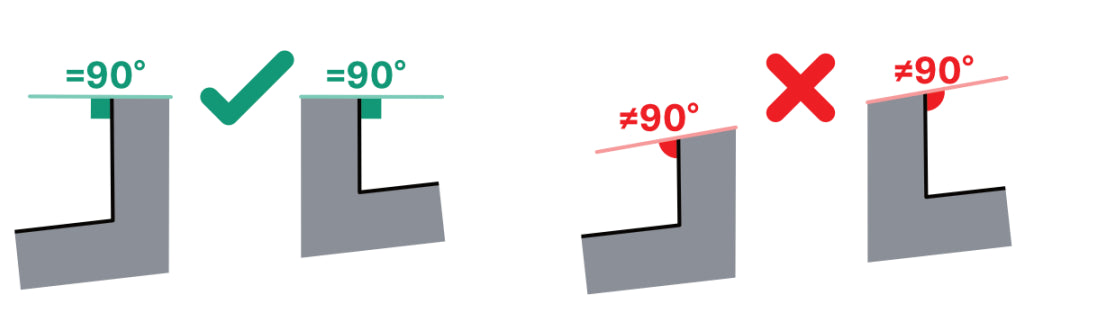

adequate water runoff. For aesthetic reasons we recommend that the upstand is built with 0° pitch i.e. not parallel with the pitched roof surface. The rooflight can accommodate being installed on an upstand with a pitch of up to 5° but please note that this will likely result in a ‘lopsided’ appearance.
Sizes and Configurations
Brett Martin Roof Lanterns can be supplied in 4 pane or 6 pane configurations:
Glass Specification:
Available with blue solar-control self-clean or cleat self clean glass as standard. Other glazing options are available on request. Glazing performance will differ from the table below if different glass options are required.
Thermal Performance
Thermal transmittance of rooflights is assessed in the horizontal plane for compliance with Part L of building regulations. There is currently no method set out for assessing the thermal performance of lantern rooflights, so the method shown in NARM NTD2 has been adopted as the most appropriate. All variants of Brett Martin Roof Lantern have a better thermal transmittance than the limiting value in Part L of 2.2 W/m2K. The thermal transmittance values (assessed horizontally) are shown below. For Ud values calculated in the vertical plane please contact Brett Martin Daylight Systems.
Acoustic Performance
Brett Martin Roof Lantern units achieve a direct airborne sound insulation value of 35db (Rw).
Wind and Snow Loads
Brett Martin Roof Lantern has been tested to show that, when correctly fitted in accordance with our instructions, will resist wind loads calculated in accordance with BS EN 1991-1-4: 2005, and imposed loads in accordance with BS EN 1873: 2005.
Thermal Fractures
Brett Martin Roof Lantern rooflights are manufactured using double glazing which includes an inner pane of toughened safety glass. If the optional extra laminated glass is required, in some circumstances, annealed, laminated safety glass can be subject to thermal stress fracture in the event of uneven heat build-up directly under the glass. Installation of blinds, or any other alterations made to the lightwell below the rooflight, must be done so with consideration to the risk of thermal stress fracture. In the case of blinds, the risk of thermal stress fracture can never be fully removed, but it can be reduced by choosing light coloured blinds and positioning them as far away from the glass as possible. If laminated option is required this can be quoted and order proforma invoice sent with payment details.More detailed guidance can be obtained upon request - please contact the technical department.
Product Dimensions & Weights
A 10-year manufacturer warranty is included as standard with the Brett Martin Roof Lantern.
Manufacturing and delivery lead time for the Brett Martin Roof Lantern is 3-5 working days for the glass and frame for the 4 pane option only with clear glass. Lead time for all other specifications and blue tint glass is 10- 15 working days. Please ensure that on delivery there is a sufficient labour on site to unload the lantern glass roof lights from the lorry. This Lantern can be delivered to England, Wales and most area in Scotland. Additional delivery fee's may be charged for certian regions.
| Name | Download |
|---|---|
| TB431 Installation Brett Martin Roof Lantern |
|
| TB432 Datasheet Brett Martin Roof Lantern |
|
